ROTEL A11 Tribute STEREO INTEGRATED AMP W/ APTX BLUETOOTH, 50W/ CHANNEL

Rotel : A-11 Tribute

STEREO INTEGRATED AMPLIFIER

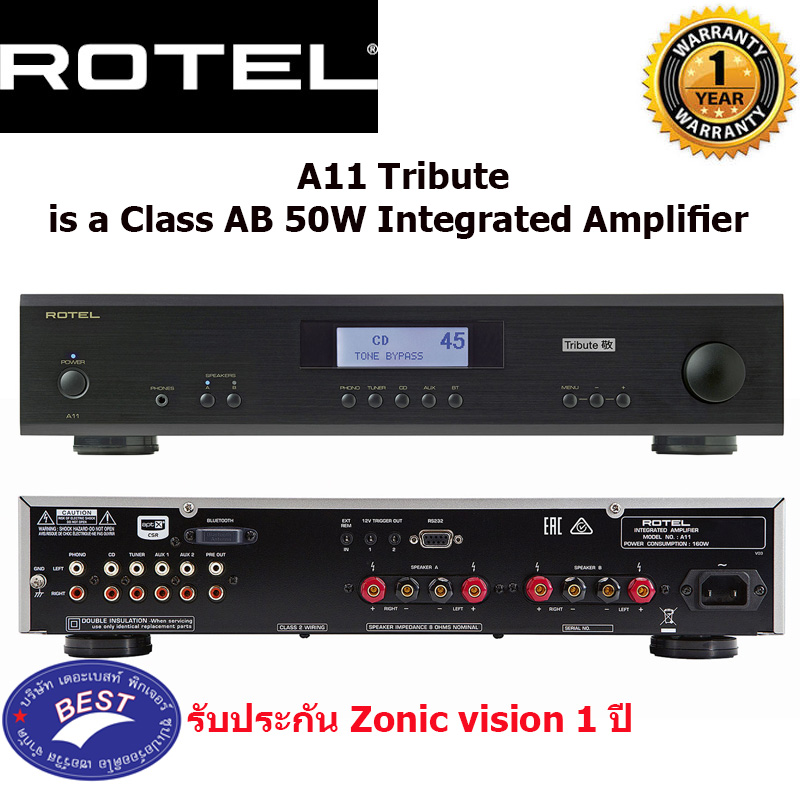

A11 Tribute



The A11 Tribute is a Class AB 50W (8 ohms) Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy spanning over 40 years in the industry.



The collaboration between Ken and Rotel’s own engineering design teams delivered on the promise of an even higher level of performance of the extremely successful and popular awardwinning A11. Upgraded components and meticulous tuning of all critical circuits deliver a richer, more expressive, and true-tolife experience from all of the support source inputs including apt-X and AAC wireless Bluetooth, array of 4 RCA analog inputs and a Moving Magnet Phono stage for vinyl fans.



The front panel graphic display and IR remote ensure effortless control of the audio driven by a Rotel in-house manufactured oversized toroidal transformer. The resulting acoustic performance speaks for itself under all loading conditions with even the most difficult speaker loads.



Specification



Continuous Power Output (20 - 20kHz, < 0.03%, 8 ohms) 50W/Ch

Total Harmonic Distortion m(20 Hz - 20 kHz at rated power) < 0.03%

Intermodulation Distortion (60 Hz : 7kHz, 4:1) < 0.03%

Frequency Response

Phono Input 20 Hz - 20k Hz, ± 0.5 dB

Line Level Inputs 10 Hz - 100k Hz, ± 0.5 dB

Damping Factor (20 - 20,000 Hz, 8 ohms) 140

Input Sensitivity / Impedance

Phono Input 2.3 mV / 47k Ohms

Line Level Inputs 180 mV / 47k Ohms



Input Overload

Phono Input 50 mV

Line Level Inputs 4 V

Preamp Output / Impedance 1 V / 470 Ohms

Tone Controls - Bass / Treble ± 10 dB at 100 Hz / 10k Hz

Signal to Noise Ratio (“A” weighting)

Phono Input 85 dB

Line Level Inputs 100 dB

Power Requirements

Europe 230 V, 50 Hz

USA 120 V, 60 Hz



Power Consumption 160 watts

Standby Power Consumption < 0.5 watts

BTU (4 ohms, 1/8 power) 479 BTU/h

Dimensions (W x H x D)

430 x 93 x 345 mm

17" x 3 5/8" x 13 1/2"

Front Panel Height 80 mm, 3 1/8"

Weight (net) 6.85 kg, 15.1 lb
