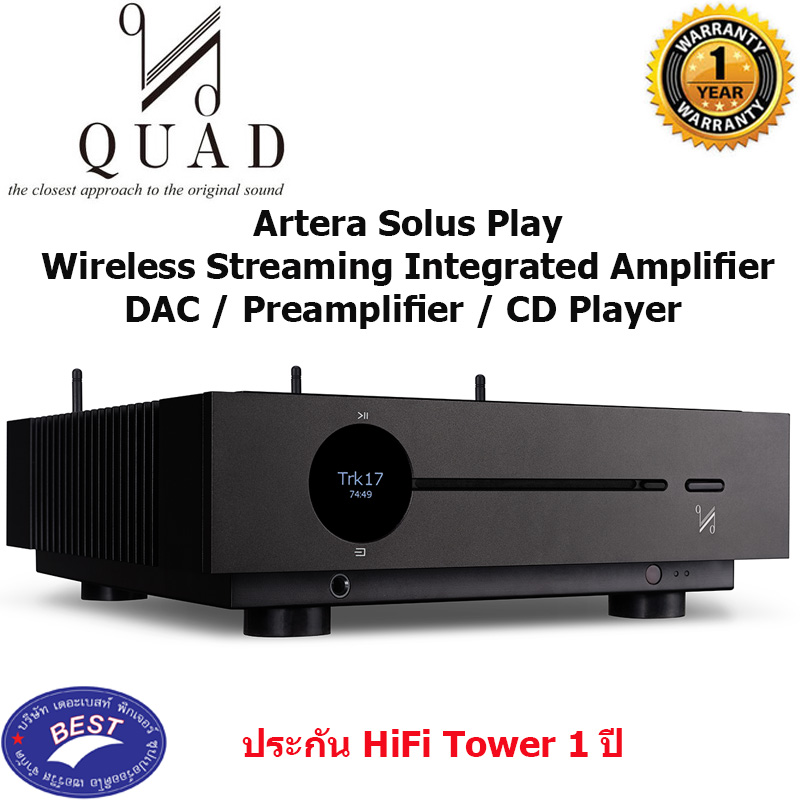

Quad Artera Solus Play Wireless Streaming Integrated Amplifier / DAC / Preamplifier / CD Player

The QUAD Artera Solus Play is the latest addition to the best-selling QUAD Artera series. It also heralds the arrival of wireless audio streaming and multi-room technology to the established QUAD Artera portfolio. Based on the recently upgraded and richly specified Artera Solus, the QUAD Artera Solus Play incorporates the acclaimed DTS Play-Fi® platform for high resolution wireless audio streaming. With DTS Play-Fi® Technology, music can be streamed over your wireless network in high-resolution format and can be easily expanded to an ultimate multi-room system if required. You can stream from any source on your wireless network, including smart-phones, tablets or PCs as well as a NAS Drive.



General Description CD Player, DAC, Pre-Amp

with Integrated amplifier

Key Technology & Features DSD (up to DSD256 Compatible) / Bluetooth (aptX)

DTS Play-Fi Technology

Audio File Formats ALAC, WAV, FLAC, AIFF, WMA, MP3, AAC, AACHE,

AAC+, DSD64, DSD128, DSD256

D/A Converter ESS ES9018 32bit DAC

USB Input USB B (PC / MAC)

Digital Audio Inputs 2 x Optical TOSlink, 2 x RCA (DIG1, DIG2)

Digital Audio Outputs 1 x Optical TOSlink, 1 x RCA (DIG)

Analogue Inputs 2 x RCA (AUX1, AUX2)

Analogue Outputs 2 x RCA, 2 x Balanced XLR, 6.3mm Headphone

Jack

Speaker Outputs 1 Pair Speaker Terminals

Sample Rate (USB B) 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz,

192kHz, 384kHz

Sample Rate 44.1 - 192kHz (Digital Inputs / Outputs)

Standby Power Consumption <0.5W

Pre-Amplifier Section

Output Level (1kHz) Variable Output RCA 0-2.3 Vrms / XLR 0-4.6 Vrms

Frequency Response 20Hz-20kHz, 1kHz (± 0.2dB)

Total Harmonic Distortion < 0.002% (@1KHz, BW=20Hz-20kHz)

Signal to Noise Ration(S/N) > 110dB (A-weighted, ref. 1V)

Channel Separation >100dB (1kHz)

Power Amplifier Section

Rated Power Output 2 x 75W (8Ω)

Frequency Response ± 0.5dB (20Hz-20kHz, 1kHz)

Total Harmonic Distortion < 0.003% (@1KHz, 50W/8Ω, BW=20Hz-20kHz)

Signal to Noise Ration(S/N) > 108dB (A-weighted, ref. 75W)

Channel Separation >82dB (A Weighted, ref.1W)

Dynamic Range A-wtd >98dB

Power Requirement (depending on region) 220V-240V~50-60Hz

100V-120V~50-60Hz

Dimensions & Weight

Dimensions (Unpacked) 320 x 320 x 105mm

Dimensions (Packed) 465 x 465 x 220mm

Net Weight 11.5 kg

Gross Weight 13.8 kg
