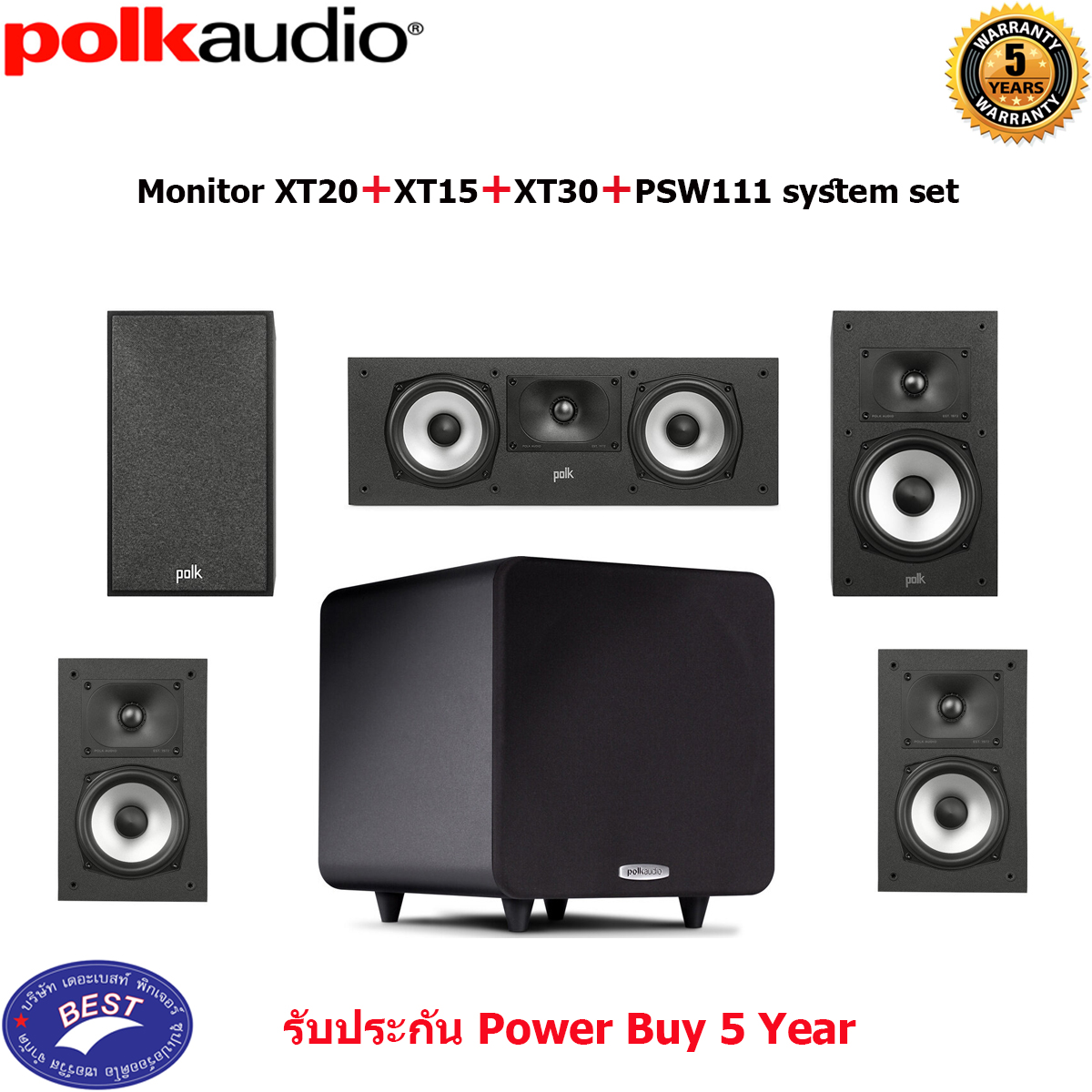

Polk Audio Monitor XT20+XT15+XT30+PSW111 system set 5.1CH

MONITOR XT20 (PAIR)

SPECIFICATIONS

BOOKSHELF SPEAKER

Width 7.5" (19.05 cm)

Height 13" (33 cm)

Depth 10.99" (27.93 cm)

Weight 5.44 kg (12 lbs)

Front Array Driver Complement • (1) 1" Terylene Dome Tweeter

• (1) 6.5" (16.51 cm) Bi-laminate Paper Woofer

Impedance Compatible with 4- and 8-ohm outputs

Crossover Frequency 3200 Hz

Total Frequency Response 38 Hz → 40,000 Hz

Sensitivity (1 watt @ 1 meter) 87dB

Recommended Amplifier Power Per Channel 30 watts → 200 watts

Inputs 5-way nickel-plated binding posts

MONITOR XT15 (PAIR)

Specifications

COMPACT BOOKSHELF SPEAKER

Qty Included Pair

Width 6.5" (16.51cm)

Depth 7.18" (18.24cm)

Weight 9Ibs/4.08kg

Front Array Driver Complement • (1) 1" (2.54 cm) Terylene Dome Tweeter

• (1) 5.25" (13.43 cm) Bi-laminate Paper Woofer

Impedance Compatible with 4- and 8-ohm outputs

Total Frequency Response 48Hz → 40,000Hz

Max Sensitivity (1 watt @ 1 meter) 86dB

Crossover Frequency 2200Hz

Mounting Type 1/4" 20 Threaded Insert or Keyhole Hanger

Recommended Amplifier Power Per Channel 30 → 150W

Speaker Inputs (1) Pair of 5-way nickel-plated binding posts

MONITOR XT30 CENTER CHANNEL

SPECIFICATIONS

CENTER CHANNEL SPEAKER

Qty Included 1

Width 19.9" (48.3 cm)

Height 6.50" (16.6 cm)

Depth 8.13" (20.7 cm)

Weight 13lbs (5.9 kg)

Front Array Driver Complement • (1) 1" (2.54 cm) Terylene Dome Tweeter

• (2) 5-¼" Bi-laminate Paper Woofers

Enclosure Type Rear port

Lower and Upper -3dB Limits 77 Hz → 26,000 Hz

Sensitivity (1 watt @ 1 meter) 89dB SPL

Total Frequency Response 55 Hz → 40,000 Hz

Recommended Amplifier Power Per Channel 30 watts → 200 watts

Tweeter/Midrange Crossover Frequency 2500 Hz

Inputs Single nickel-plated 5-way binding posts

PSW111 Subwoofer 8"

กำลังขับวัตต์(RMS):300

ระบบเสียง:0.1CH

ช่องต่อINPUT(ช่อง):1 LINE-IN RCA 1 POWER IN

ช่องต่อOUTPUT(ช่อง):2 SPEAKER OUT

FREQUENCY RESPONSE:36Hz-250Hz

ขนาดเครื่อง (cm):30.81x27.94x33.02

น้ำหนัก(กก):9.21

อื่นๆ:DYNAMIC BALANCE COMPOSITE WOOFER DRIVERS 8"/DOWNWARD FIRING PORTS/MORE POWERFUL MOTOR STRUCTURE FOR A HIGHER BL KLIPPEL OPTIMIZED WOOFER BY USING A STATE-OF-THE-ART KLIPPEL DISTORTION ANALYZER BUILT-IN HIGH CURRENT AMPLIFIERS/FEATURES AN EFFICIENT,DIGITAL HYBRID BASH AMP SIGNAL-SENSING"SMART AMP"AUTO ON/OFF CIRCUITRY/NON-RESONANT MDF CONSTRUCTION/5 YEAR WARRANTY
