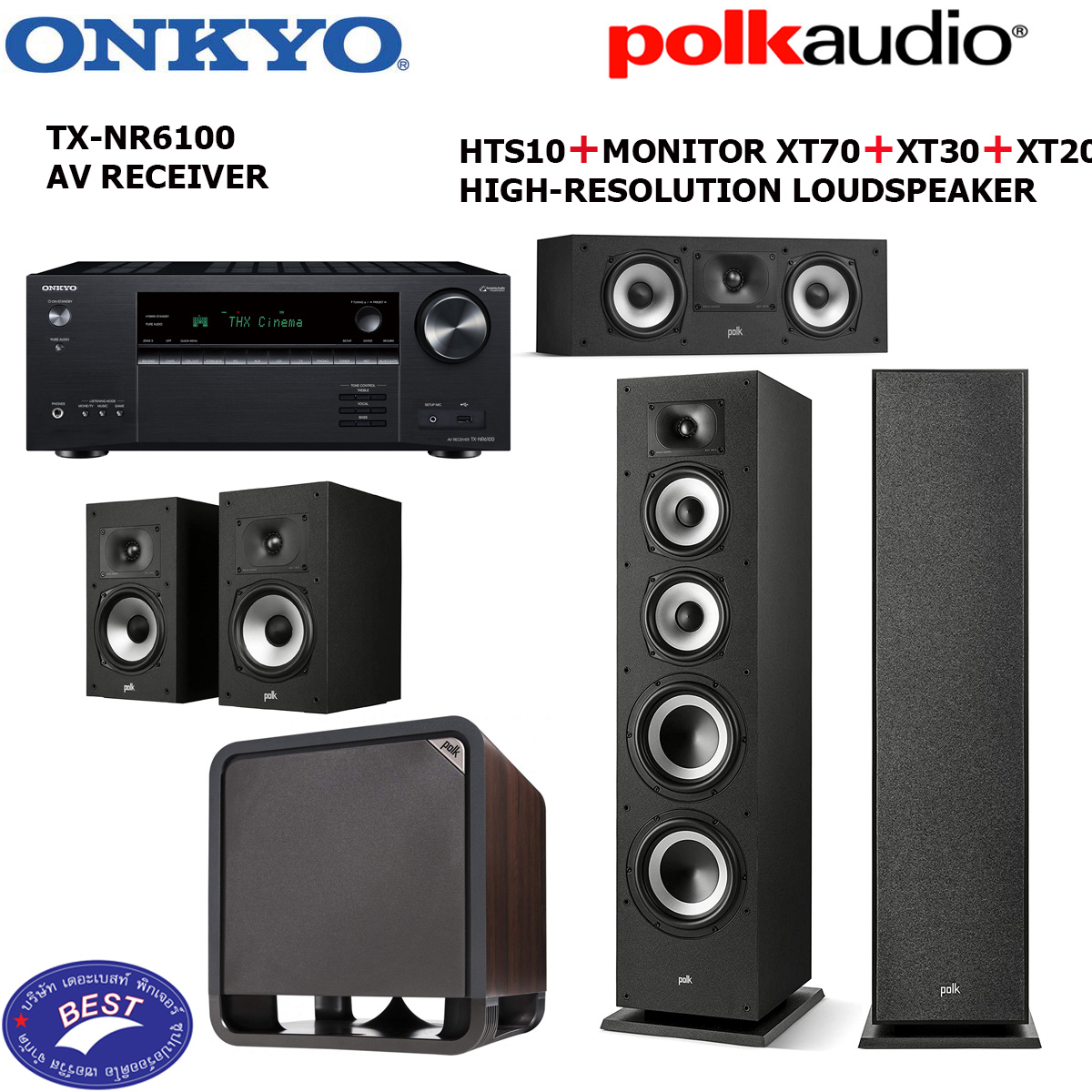

Onkyo TX-NR6100 + POLK MONITOR XT70 XT30 XT20 HTS10 system

TX-NR6100 7.2-Channel THX Certified AV Receiver

AMPLIFIER

Power output (All channels)

210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)

Dynamic power 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front) THD+N (Total Harmonic Distortion + Noise)

0.08% (20 Hz–20 kHz, half power)

Input sensitivity and impedance 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)

Rated RCA output level and impedance 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)

Frequency response 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)

Tone control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)

Signal-to-noise ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)

Speaker impedance 4–16 ohms



XT70

The highest performing loudspeaker in the Monitor XT line, the MXT70 maximizes your enjoyment of music, movies, TV and gaming. With its dual 6.5" Dynamic Balance woofers and 8" passive bass radiators, and Hi-Res Audio certified tweeter, the MXT70 will fill your home with powerful, high-resolution sound with crystal clear highs and deep, effortless bass.



SPECIFICATIONS

FLOOR STANDING TOWER SPEAKER

Qty Included 1

Width 9.25" (23.5 cm)

Height 40.4" (102.6 cm)

Depth 12.5" (31.8 cm)

Weight 35 lbs (15.88 kg)

Front Array Driver Complement • (1) 1" (2.54 cm) Terylene Dome Tweeter

• (2) 6.5" (16.51 cm) Bi-laminate Paper Woofer

• (2) 8" (20.32 cm) Passive Bass Radiators

Sensitivity (1 watt @ 1 meter) 89 dB

Crossover Frequency 2,700 Hz

Total Frequency Response 35 Hz → 40,000 Hz

Impedance Compatible with 4- and 8-ohm outputs

Recommended Amplifier Power Per Channel 25 watts → 200 watts



XT30

Compact and affordable, Monitor XT30 high-performance, center channel loudspeaker maximizes the enjoyment of movies and gaming with clear, focused dialogue and dynamic, high-resolution, full-range sound.



SPECIFICATIONS

CENTER CHANNEL SPEAKER

Qty Included 1

Width 19.9" (48.3 cm)

Height 6.50" (16.6 cm)

Depth 8.13" (20.7 cm)

Weight 13lbs (5.9 kg)

Front Array Driver Complement • (1) 1" (2.54 cm) Terylene Dome Tweeter

• (2) 5-¼" Bi-laminate Paper Woofers

Enclosure Type Rear port

Lower and Upper -3dB Limits 77 Hz → 26,000 Hz

Sensitivity (1 watt @ 1 meter) 89dB SPL

Total Frequency Response 55 Hz → 40,000 Hz

Recommended Amplifier Power Per Channel 30 watts → 200 watts

Tweeter/Midrange Crossover Frequency 2500 Hz

Inputs Single nickel-plated 5-way binding posts



XT20

Monitor XT20 maximizes the enjoyment of music, gaming, and movies with lifelike, high-resolution sound and effortless bass. As the higher-performing bookshelf speaker in the Monitor XT line, the MXT20 can be paired with louder amplifiers and can produce deeper bass (a full half octave lower) than the compact MXT15

SPECIFICATIONS

BOOKSHELF SPEAKER

Width 7.5" (19.05 cm)

Height 13" (33 cm)

Depth 10.99" (27.93 cm)

Weight 5.44 kg (12 lbs)

Front Array Driver Complement • (1) 1" Terylene Dome Tweeter

• (1) 6.5" (16.51 cm) Bi-laminate Paper Woofer

Impedance Compatible with 4- and 8-ohm outputs

Crossover Frequency 3200 Hz

Total Frequency Response 38 Hz → 40,000 Hz

Sensitivity (1 watt @ 1 meter) 87dB

Recommended Amplifier Power Per Channel 30 watts → 200 watts

Inputs 5-way nickel-plated binding posts

Speaker Inputs 5-way nickel plated binding posts



HTS 10

รายละเอียดสินค้า

กำลังขับวัตต์(RMS):200

ระบบเสียง:0.1 CH

ช่องต่อINPUT(ช่อง):1 LINE-IN RCA

1 LFE(UNFILTERED)

FREQUENCY RESPONSE:25Hz-180Hz

น้ำหนัก(กก):17.12

ขนาด(ซม):41.91x38.40x40.89
