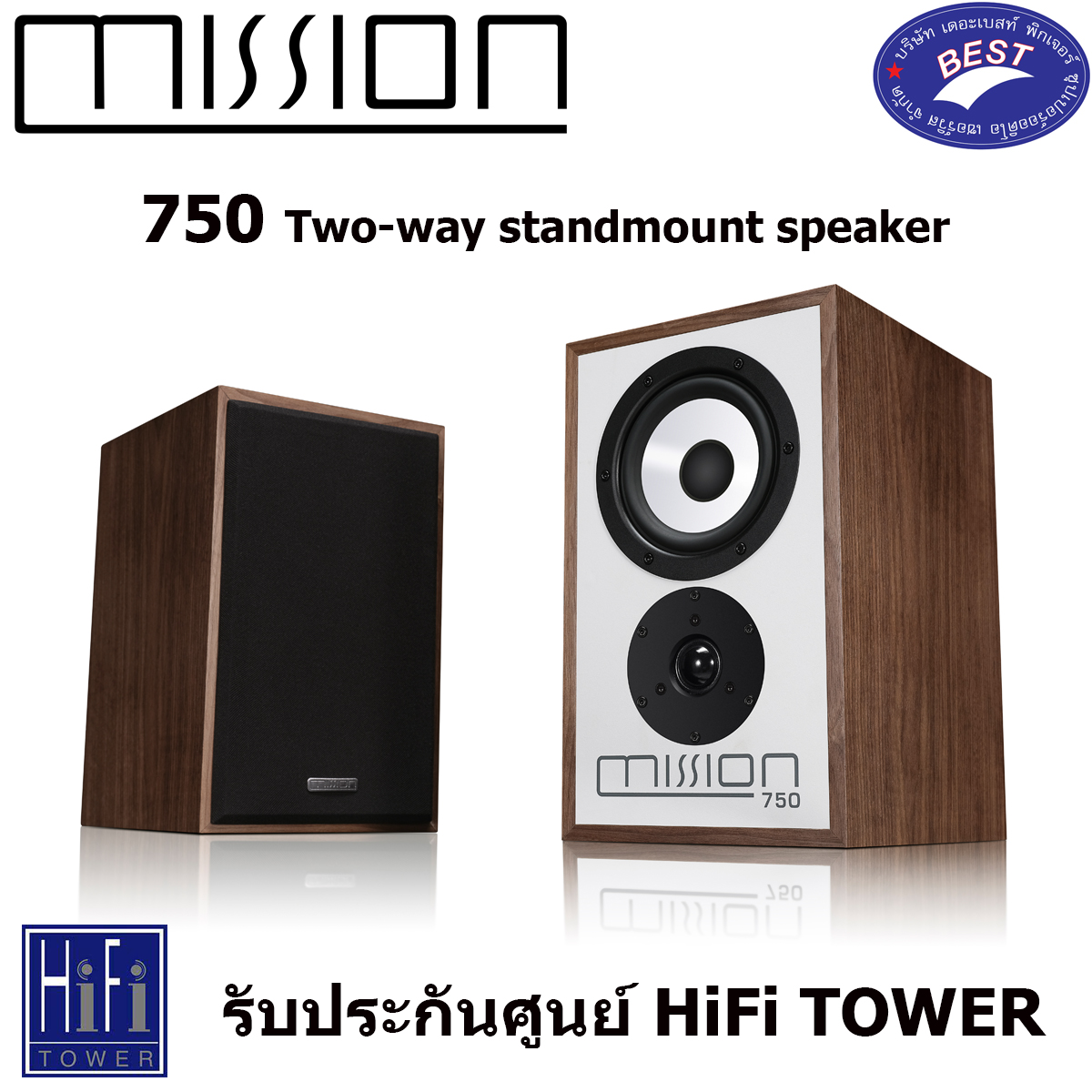

Mission 750 Two-way standmount speaker

MISSION 750

Following in the footsteps of the award-laden flagship Mission 770 – which also heralded Mission’s return to UK-based manufacturing – and even more recently, the Mission 700, the all-new Mission 750 brings the award-winning ‘modern-classic’ design to a whole-new price-point and category.

Model Mission 750

General description Two-way standmount

Design philosophy and core technology

Enclosure type Bass reflex

Transducer complement 2-way

ABR

Bass driver 5.25" (135mm) mineral loaded polypropylene cone

Midrange driver

Treble driver 1.25" (28mm) Soft Dome

Full-range driver

AV shield No

Sensitivity (2.83V @ 1m) 86dB

Recommended amplifier power 25W - 100W

Peak power handling

Peak SPL 103dB

Nominal impedance 6Ω (Compatible 8Ω)

Minimum impedance 4.5Ω

Frequency response(+/-3dB) 48Hz - 20kHz

Bass extension(-6dB) 42Hz

Crossover frequency 2.4kHz

Cabinet Volume (in litres) 12.2L

Dimensions (mm)

Height (on plinth) 355mm

Width 216mm

Depth (with terminals) (270 + 35) mm

Carton size 565 * 395 * 485 mm

Net weight 9.0kg / pcs

Gross weight 19.5kg / ctn

Finish Walnut or Black Oak real wood veneer with white bafe finish

Standard accessories rubber feet
