Emotiva RMC-1 16 Channel Dolby Atmos & DTS:X Cinema Processor

Specifications

Audio Operating Modes (modes determine how the audio signal is processed by the RMC-1):

• Reference Stereo Mode: Purist stereo mode with no bass management; analog signals remain pure analog.
• Direct Mode: Minimal processing with bass management.
• Surround Mode: Full surround sound processing, with bass management and room correction.
• Stereo Mode: Full bass management and room correction for stereo input signals.
• All Stereo Mode

Decoding and Processing

Surround Sound Processing Support:

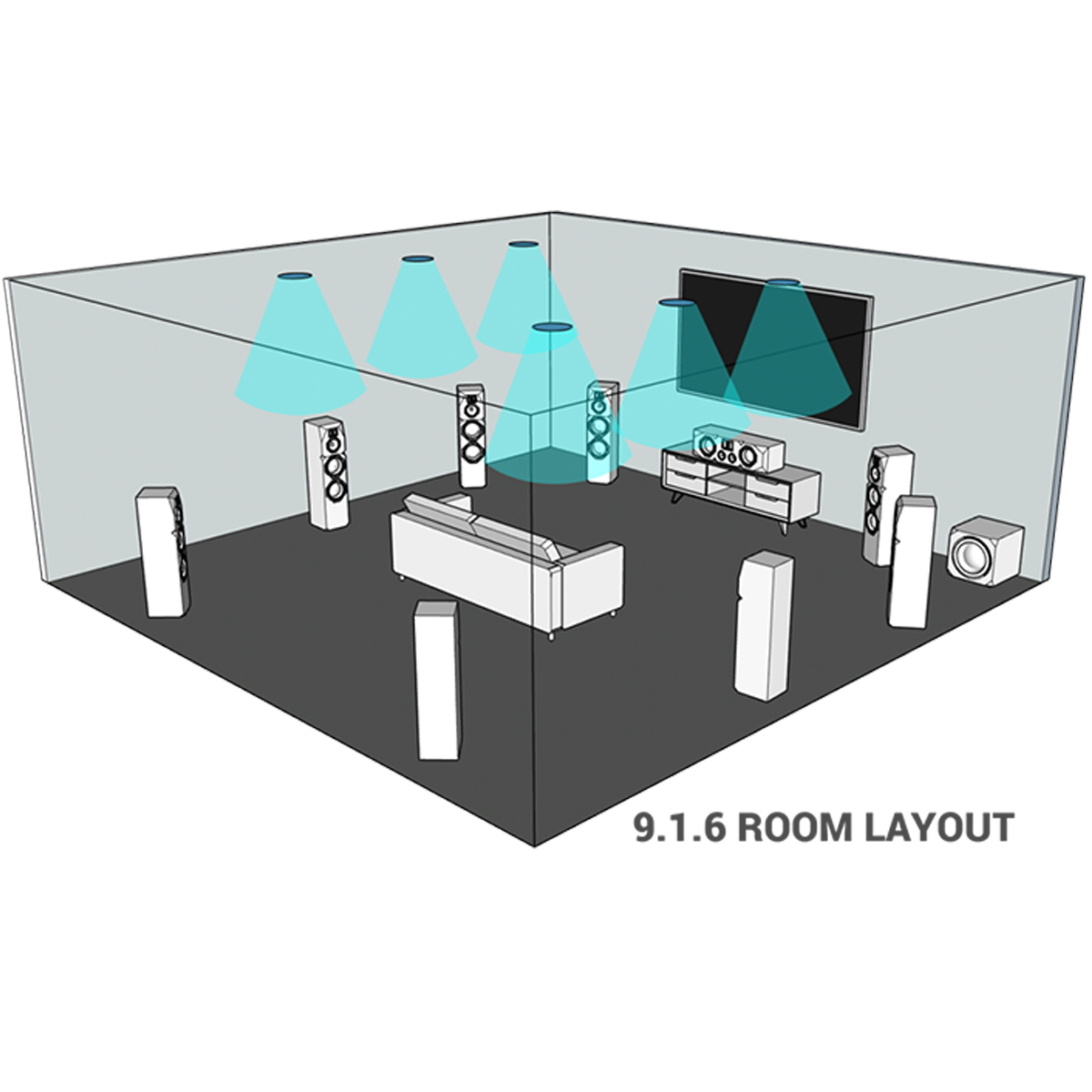

• Dolby Atmos (up to 9.1.6)
• Dolby TrueHD (up to 7.2)
• Dolby Digital Plus
• Dolby Digital
• DTS:X (up to 7.1.4)
• DTS-HD Master Audio
• DTS-HD High Resolution Audio
• DTS 5.1
• Multi-Channel PCM

Digital Post Processing Support:

• Dolby Surround
• DTS Neural:X

Displays and Controls

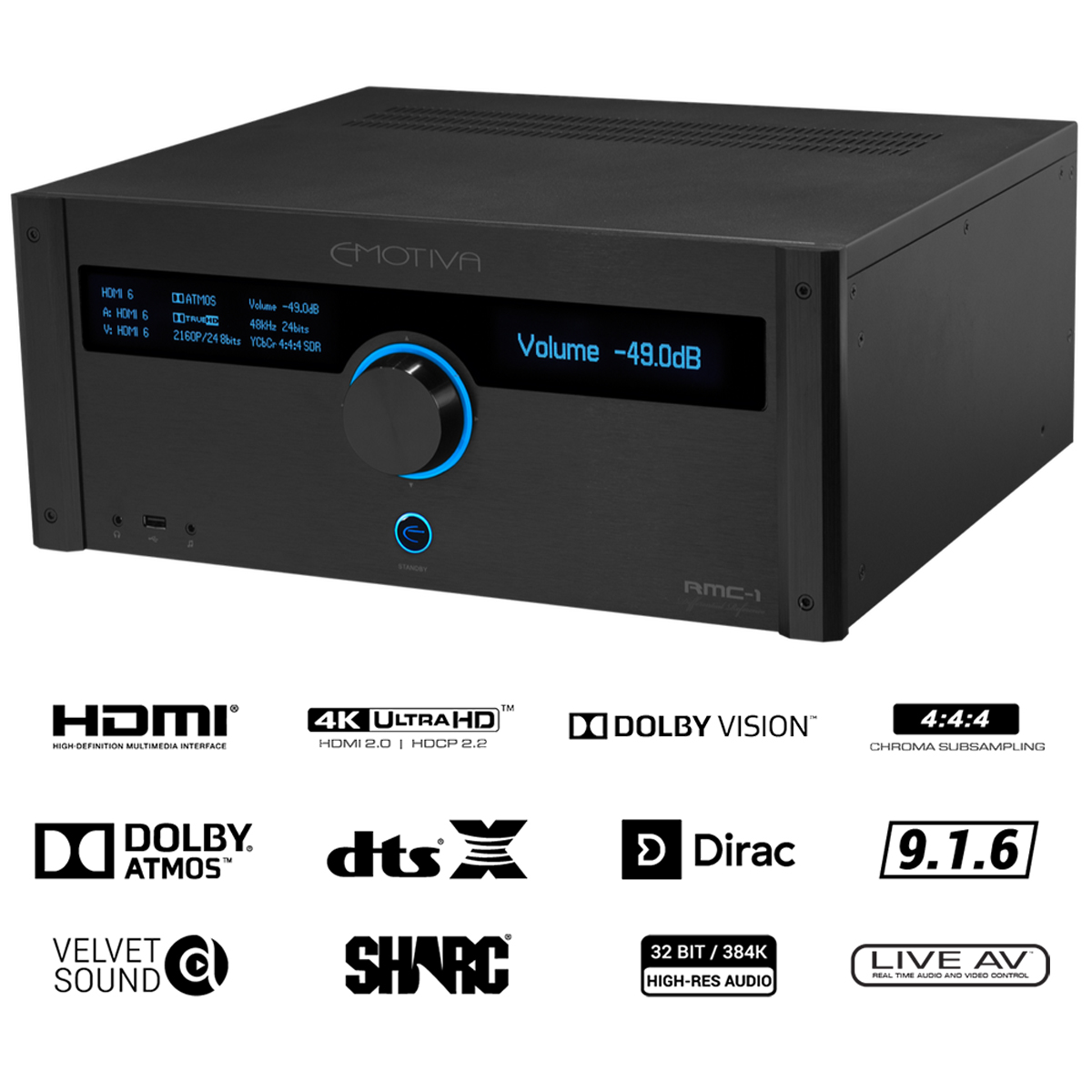

Front Panel Display:

• Dual, independently configurable, 64 x 256 resolution, blue OLED displays

On-Screen Display (OSD):

• Configurable full color OSD displayed over live video, including 4k and 3D sources

Controls and Remote Control Options:

• Front panel control via unique multi-axis encoder, which combines a precision rotary encoder and a sensitive four-quadrant joystick type controller.
• Full sized machined aluminum infrared remote control with discrete buttons for HDMI input selection, trim adjustments, and other major functions.
• Remote control apps - available for Apple and Windows computers and Android phones.
• Integration with universal infrared remote controls and popular infrared and network operated whole-home control systems.
• Four flexible Trigger Outputs can be independently configured to activate amplifiers or other trigger-enabled equipment.

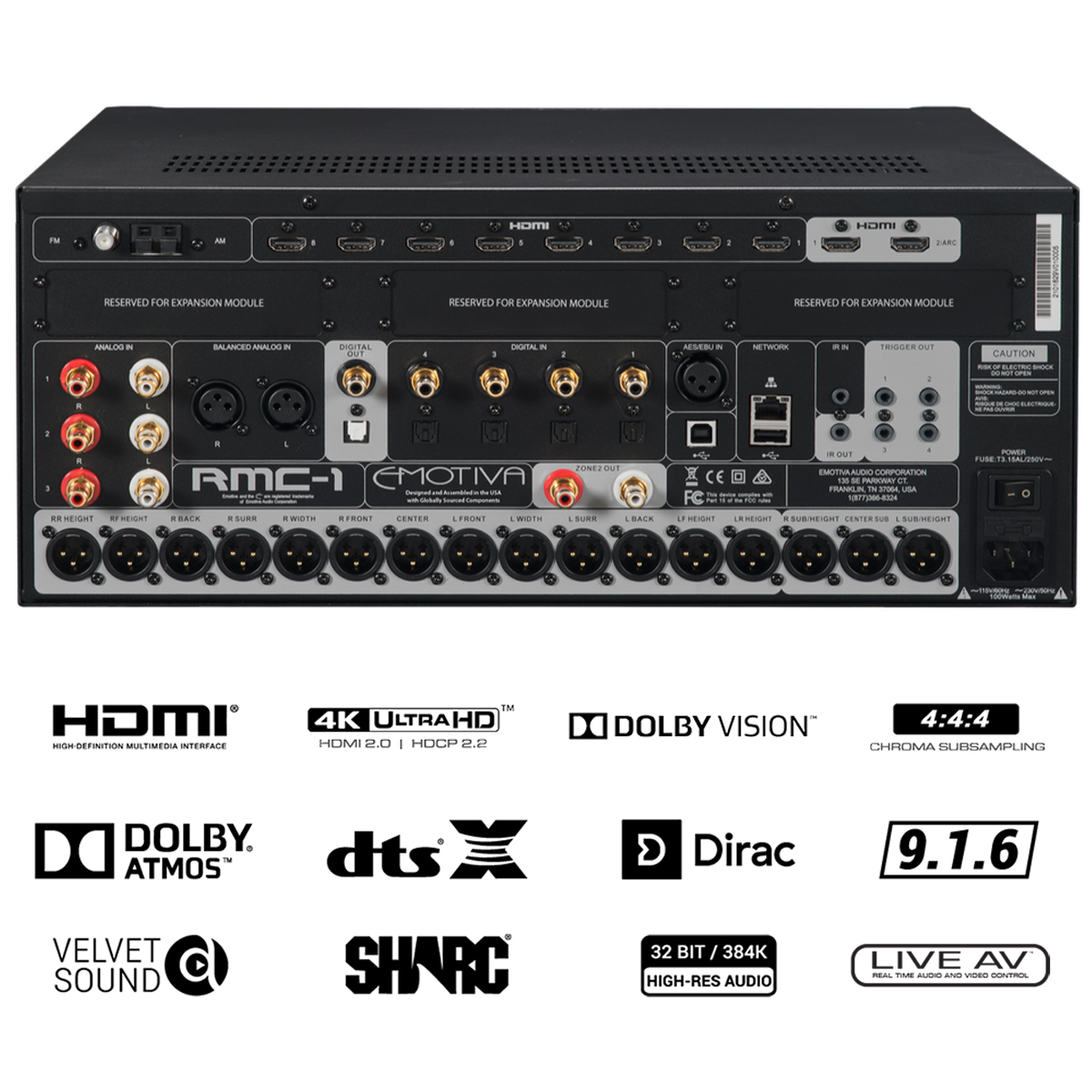

Inputs / Outputs

Analog Audio Inputs:

• (1) pair; stereo: Reference quality analog audio (balanced XLR)
• (3) pairs; stereo: Reference quality analog audio (unbalanced; machined gold-plated RCA connectors)

Analog Audio Outputs:

• (1) set; 16 channels: Main analog audio outputs (balanced XLR)
• (1) pair; stereo: analog line level Zone 2 output (unbalanced)
• (1) high quality 1/8” stereo headphone output

Digital Video Inputs and Outputs:

• (8): HDMI digital video inputs: HDMI 2.0b with HDCP 2.2 (all inputs support HDMI 2.0b and HDR, including dynamic HDR and Dolby Vision)
• (2): HDMI digital video outputs: HDMI 2.0b with HDCP 2.2 (one with CEC and ARC). (both outputs support HDMI 2.0b and HDR - including dynamic HDR and Dolby Vision)

Digital Audio Inputs:

• Internal high-performance AM/FM tuner.
• (4): Toslink optical S/PDIF digital audio (up to 24/192)
• (4): Coax (RCA) electrical S/PDIF digital audio (up to 24/192)
• (1): AES/EBU (XLR) digital audio
• (1): USB Type B digital audio (UAC2 USB audio up to 24/192k)
• Both digital PCM and DSD audio supported on all HDMI inputs
• Digital PCM audio up to 24/192k supported on USB input

Digital Audio Outputs:

• (1): Toslink optical S/PDIF digital audio
• (1): Coax (RCA) electrical S/PDIF digital audio

Other Inputs:

• (2): USB Type A digital data inputs (for firmware updates and future enhancements)
• (1): Ethernet port (RJ-45) (network connection for Dirac and remote control applications)
• (3): Expansion slots for additional optional custom Input/Output modules

Cutting Edge Operating System and Processors

Main System Processor:

• The RMC-1 is controlled by our own proprietary Linux-based operating system, and by several powerful DSP engines, each running custom software code.
• The main control functions on the RMC-1 are handled by a Texas Instruments AM-1808 Sitara Arm9 32 bit 375MHz processor.

Video Processing:

• The RMC-1 is a pure video switch; video inputs are switched directly to the appropriate output without any unnecessary processing. Video switching on the RMC-1 is handled by three Panasonic MN864788 High Speed LSI 4k UHD Video Switches.

Audio Processing:

• All audio decoding and post processing is handled by twin Analog Devices, dual-core, 450 MHz DSP engines.
• Audio digital-to-analog conversion for each of the 16 main audio outputs is performed by an individual AKM4490 Verita DAC operating in fully balanced Mono mode.

Power Requirements

• 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected)

Dimensions & Weight

• Boxed: 22” Wide x 19” Deep x 10” High
• Unboxed: 17” Wide x 15.5” Deep x 7” High (not counting feet)
• Unboxed: 17” Wide x 15.5” Deep x 7.525” High (with feet)
• Unboxed: 24 lbs
• Boxed: 32 lbs
