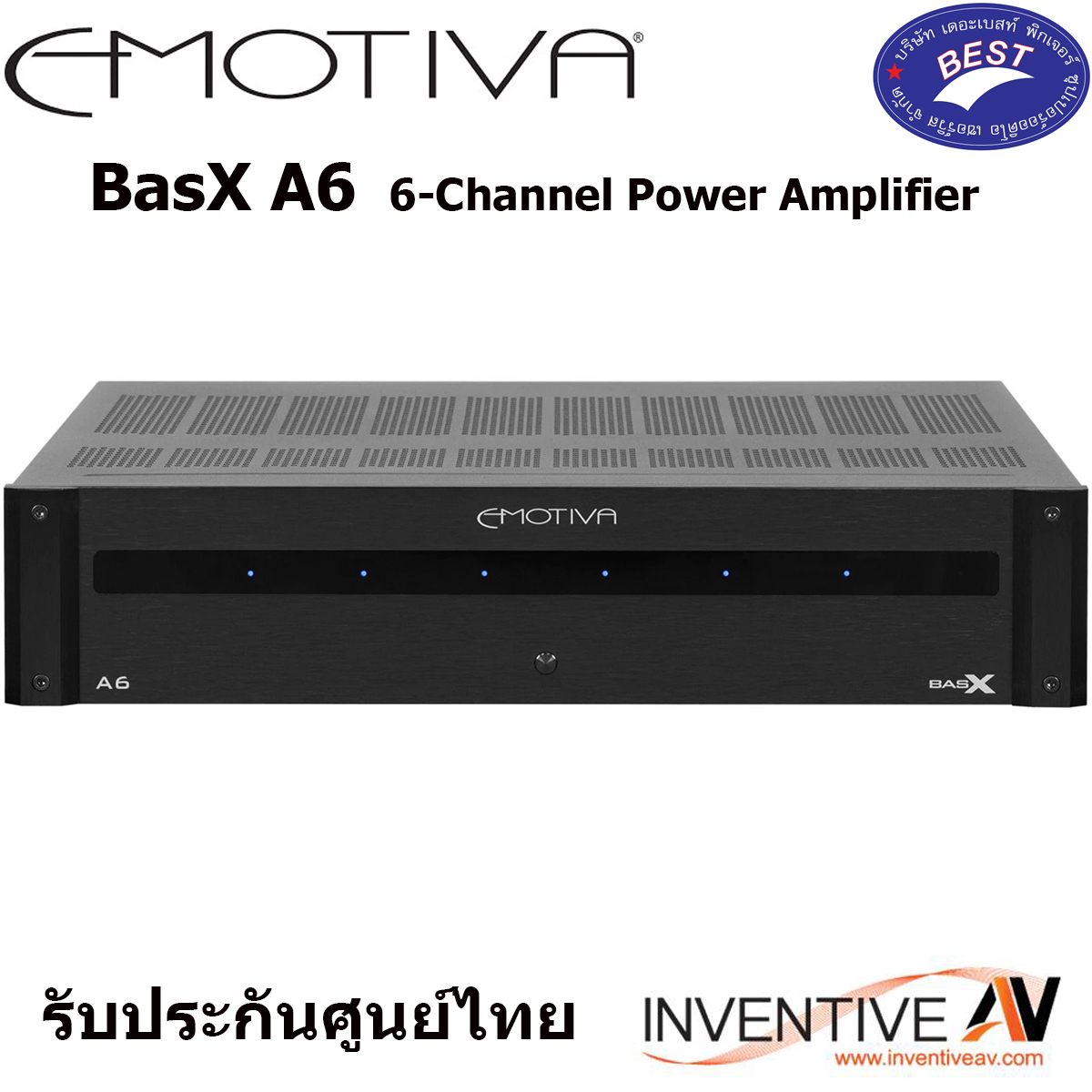

Emotiva BasX A6 6-Channel Power Amplifier

The BasX A6 is a six channel power amplifier. The BasX A6 combines classical audiophile amplifier architecture, based on a heavy-duty linear power supply, and a carefully designed high current short signal path Class A/B output stage, with advanced microprocessor-controlled monitoring and protection circuitry, to deliver superb sound quality at a truly reasonable price.



Audio Specifications

Power Output (ALL channels driven):

• 90 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms

• 125 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms



Power Output (two channels driven):

• 120 watts RMS per channel; into 8 Ohms

• 175 watts RMS per channel; into 4 Ohms



Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.02 dB)

Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB

THD + noise: < 0.02% (A-weighted); ref rated power

Signal to Noise Ratio (8 Ohm load):  > 112 dB; ref rated power; (A-weighted)



Minimum Recommended Load Impedance (per channel): 4 Ohms  (equals one 4 Ohm load or two paralleled 8 Ohm loads)

Damping Factor (8 Ohm load): > 500.

Input Sensitivity (for rated power; 8 Ohm load): 1.2 V

Gain: 29 dB

Input Impedance: 27 kOhms

Input and Output Connections

Input Connections: Unbalanced (RCA); one each per channel



Speaker Output Connections: Audiophile grade 5-way binding posts



Trigger:

• Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.

• Trigger Output: 12 VDC; can drive any load up to 120 mA



Power Requirements

115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected)



Front Panel Controls and Indicators

• Standby: push button

• Status LEDs: one per channel; blue

• Status LEDs change to red to indicate a fault condition.

• Standby LED: amber



Rear Panel Controls

AC Power Switch: rocker switch (switches AC main power)



Status LEDs switch: disables front panel Status LEDs



Protection

The BasX A6 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.



Mechanical

Dimensions:

• 17” wide x 4” high x 15-1/2” deep (not including connectors).

• 21” wide x 8” high x 21” deep (boxed)



Weight:

• 36 lbs (unboxed)

• 39 lbs (boxed)
