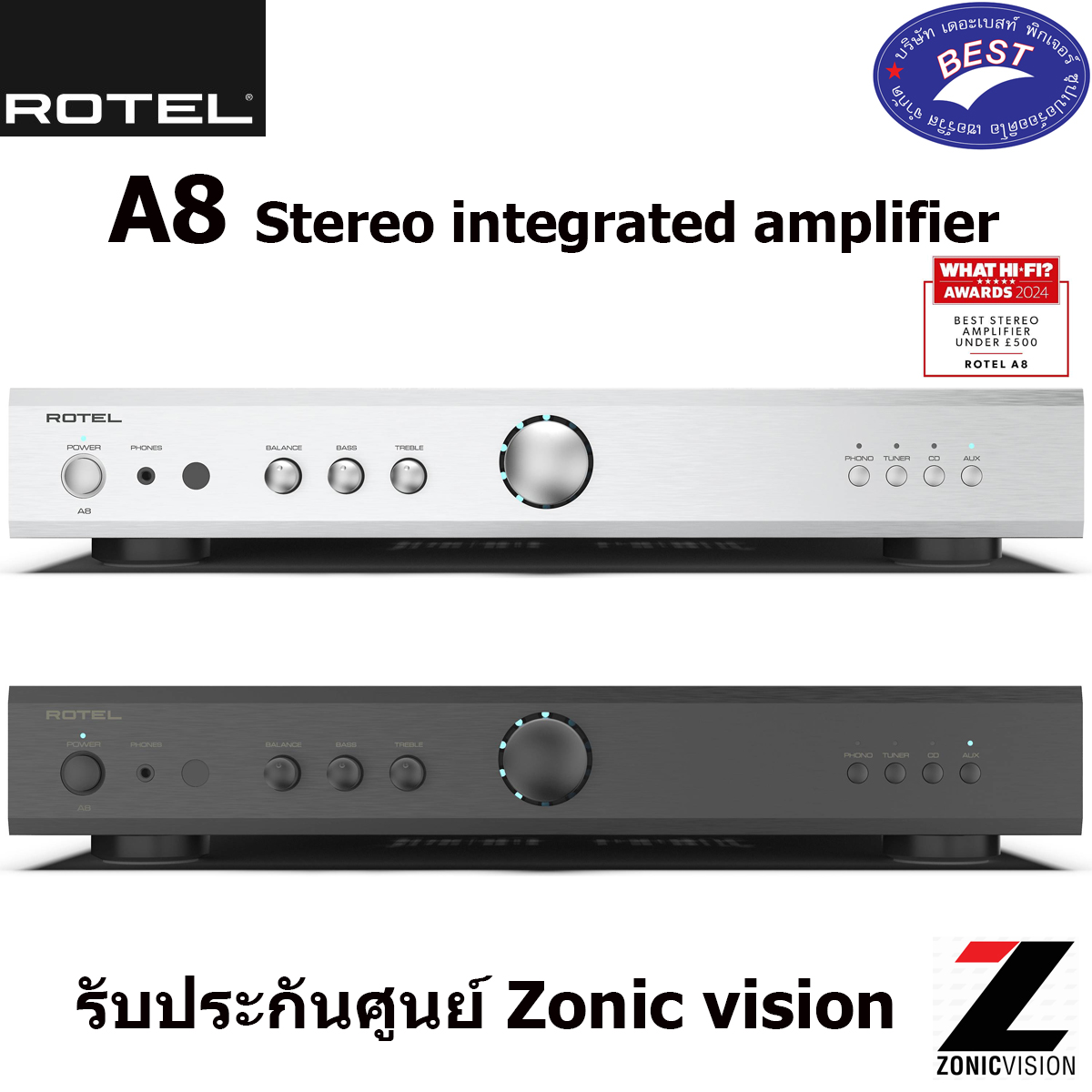

Rotel A8 Stereo integrated amplifier

The A8 Integrated Amplifier blends power, size, efficiency, and value for music lovers yearning to enhance their musical journey. Engineered with a robust Rotel-crafted toroidal transformer driving 40 Watts per channel of Class A/B potency into 4 ohms featuring three RCA analog inputs and a Moving Magnet Phono stage tailored for vinyl enthusiasts.

Power Output

30 W/ Ch (8 Ω)

40 W/ Ch (4 Ω)

Total Harmonic Distortion (THD)

<0.03%

Frequency Response

Line Level Inputs: 10 Hz - 100k Hz, -0.5 dB, +0 dB

Phono Input: 20 Hz - 20k Hz, -0.5 dB, +0 dB

S/N Ratio (IHF "A" Weighted)

Line Level Inputs: 90 dB (Max Volume)

Line Level Inputs: 102 (Min Volume)

Phono Input: 80 dB

Dimensions (W × H × D)

430 × 73 × 347 mm

17” x 2 7/8” x 13 5/8”

Front Panel Height 60 mm (2 3/8”)

Power Requirements 120 V, 60 Hz

Power Consumption 110 W

Standby Power Consumption <0.5 W

Net Weight 5.8 kg, 12.8 lbs

BTU Rating (4 Ω, 1/8th power) 340 BTU/ h
