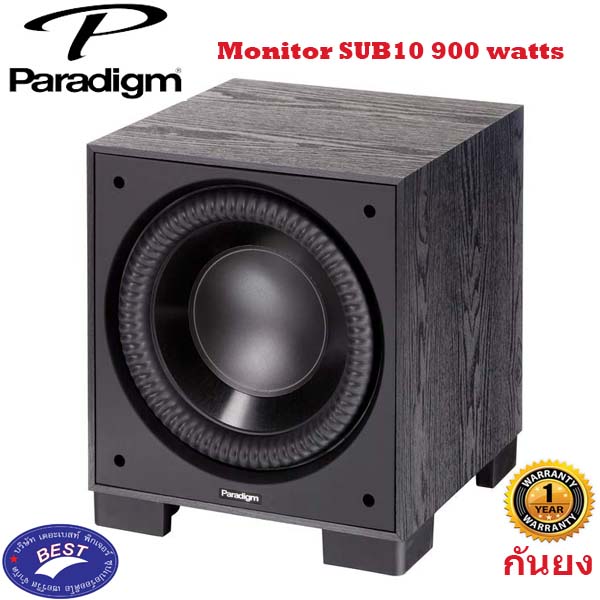

PARADIGM PARADIGM Monitor SUB 10 10"

29,900.00 บาท

จำนวนชิ้น	ส่วนลดต่อชิ้น	ราคาสุทธิต่อชิ้น
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}}	{{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} บาท	{{number_format(price_row.price,2)}} บาท



คงเหลือ	ไม่จำกัด ชิ้น
จำนวน (ชิ้น)	- +
ซื้อเลย หยิบลงตะกร้า ซื้อเลย หยิบลงตะกร้า คุณมีสินค้าชิ้นนี้ในตะกร้า 0 ชิ้น
บัตรประชาชน บุ๊คแบ๊งค์ คุ้มครองโดย LnwPay

คุยกับร้านค้า	โทร 0855929696 0860589314 thebestpicturesuperaudioservice/ Add 0855929696
{{ size_chart_name }}
หมวดหมู่	Paradigm
สภาพ	สินค้าใหม่
เพิ่มเติม
สภาพ	สินค้ามือสอง
เกรด
สถานะสินค้า
ระยะเวลาจัดเตรียมสินค้า
เข้าร่วมโปรโมชั่น


Share :

รายละเอียดสินค้า
วิธีการสั่งซื้อ
สินค้าที่เกี่ยวข้อง

รายละเอียดสินค้า

ไฮไลท์	Monitor SUB 10 Specifications Design Single driver, acoustic suspension, built-in advanced Ultra-Class-D™ amplifier, USB port for PBK?equalization, removable grille Amplifier 900 watts Dynamic Peak; 300 watts RMS Sustained Amplifier Features Auto-on/off, soft clipping, thermal protection Room Correction Paradigm Perfect Bass Kit™ (sold separately) Low Pass Filter Frequency Variable 50 Hz - 150 Hz; Bypass Option Low Frequency Driver 254-mm (10 in) carbon-loaded polypropylene cone, NLC™ non-limiting corrugated Santoprene® surround, 38-mm (1-1/2 in) 4-layer copper-clad aluminum voice coil. Nomex® spider, 4.5 lb ferrite magnet, AVS™ die-cast heatsink chassis Low Frequency Extension 17 Hz (DIN) Sub / Sat Phase Alignment Variable 0° - 180° Finishes Black Ash Inputs Two RCA (L/R-Mono) for L/R lineout or Sub-Out/LFE-Out of receiver/processor or other line-level source Compatible Products PT-2 Wireless Transmitter (sold separately) Weight 30 lbs. (13.6 kg) Dimensions HxWxD 13" × 11.125" × 12.75" (33cm × 28.3cm × 32.4cm)
ข้อมูล	น้ำหนัก บาร์โค้ด ลงสินค้า อัพเดทล่าสุด

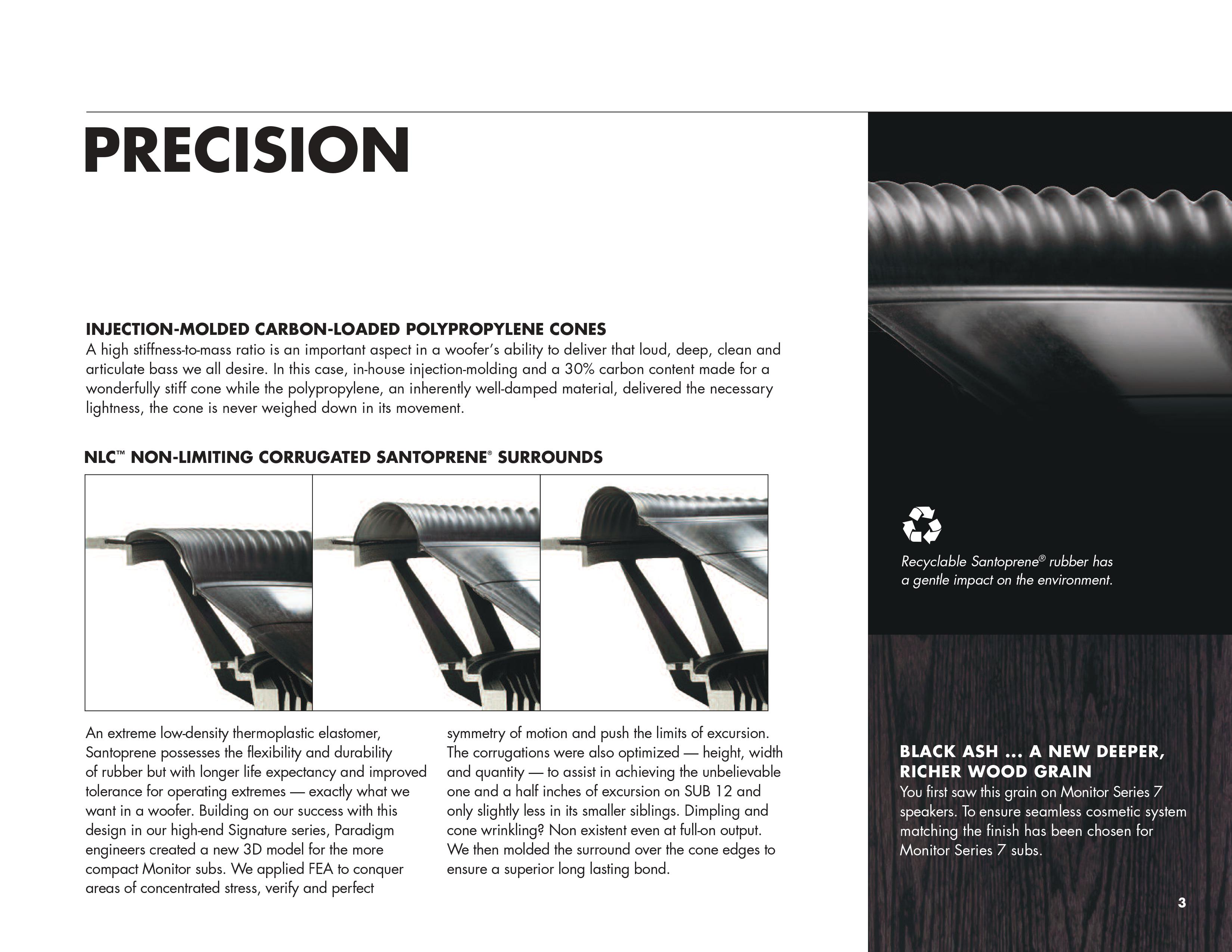

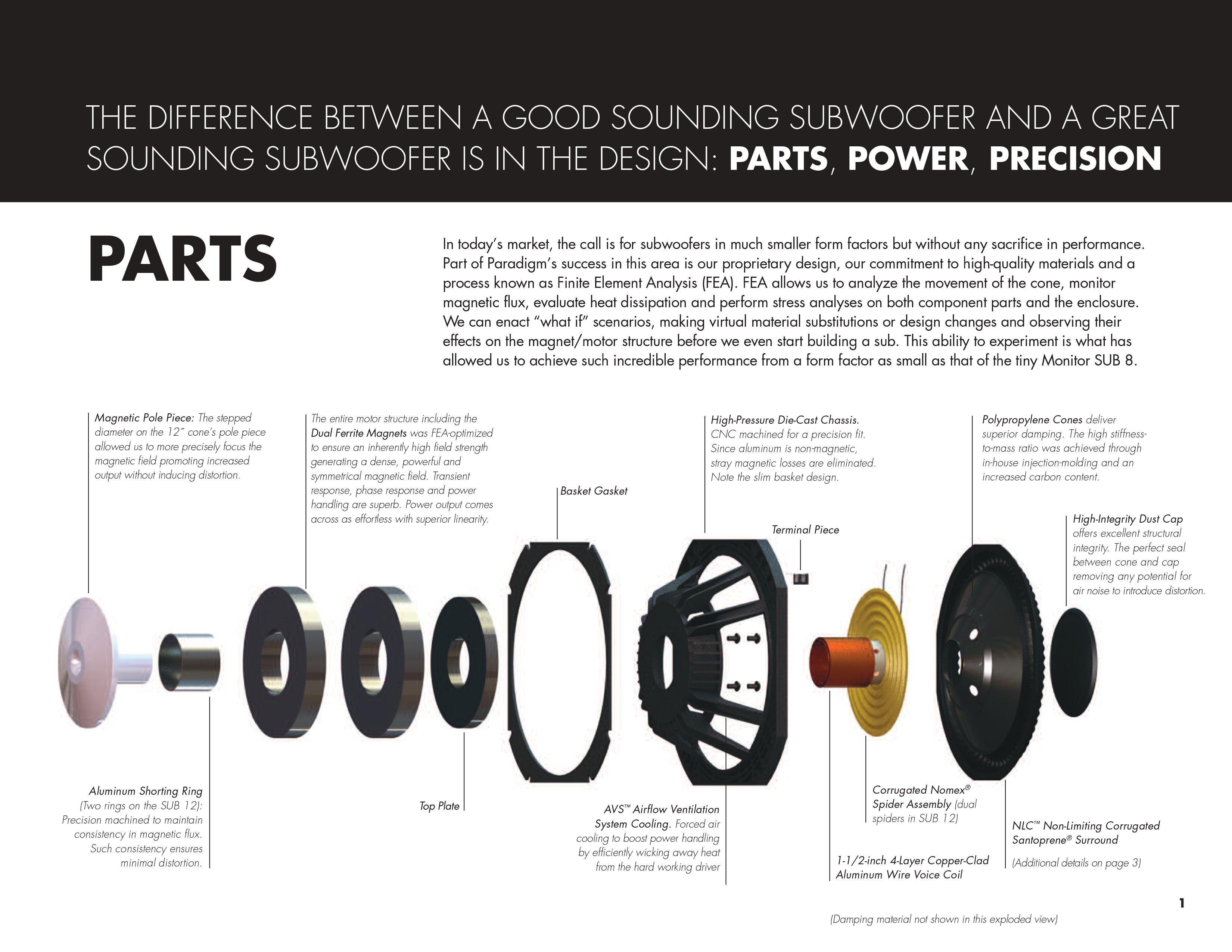

รายละเอียดสินค้า	Monitor Subwoofers - A compact footprint without compromising bass output or bass extension. - Trickle-down Paradigm Reference technology … despite cone size, the NLC™ non-limiting corrugated Santoprene® surrounds help cones move huge volumes of air for bass so loud and so deep it will send the cat running for cover. - State-of-the-art room-tuning technology. Don’t worry about perfect placement, put the sub where it looks best and let Paradigm’s Perfect Bass Kit™ (sold separately) dial in perfect bass. - Go wireless! Paradigm’s PT-2 transmitter (sold separately) can be used with up to four Monitor subwoofers simultaneously. - The clean, modern aesthetic matches the new Monitor Series 7 speakers. - Monitor Series 7 subs were designed, engineered and manufactured in our state-of-the-art Toronto, Canada facility. Input Facilities: - Line-level Inputs Control Facilities: - Auto On/Standby - Subwoofer Level - Subwoofer Cut-Off Frequency (continuously variable 50 Hz – 150 Hz); Bypass Option - Sub/Sat Phase Alignment (continuously variable 0° to 180°) THE DIFFERENCE BETWEEN A GOOD SOUNDING SUBWOOFER AND A GREAT SOUNDING SUBWOOFER IS IN THE DESIGN: PARTS, POWER, PRECISION PARTS In today’s market, the call is for subwoofers in much smaller form factors but without any sacrifice in performance. Part of Paradigm’s success in this area is our proprietary design, our commitment to high-quality materials and a process known as Finite Element Analysis (FEA). FEAallows us to analyze the movement of the cone, monitor magnetic flux, evaluate heat dissipation and perform stress analyses on both component parts and the enclosure. We can enact “what if” scenarios, making virtual material substitutions or design changes and observing their effects on the magnet/motor structure before we even start building a sub. This ability to experiment is what has allowed us to achieve such incredible performance from a form factor as small as that of the tiny Monitor SUB8. POWER - 900 watts Dynamic Peak Power / 300 watts RMS Sustained - Ultra-Class-D™ Power Amplifier with Unique Switching Power Supply. - BIGPower from a Compact Package: The low-noise high-power compact transformer (0.29 lb/0.13 kg) boasts an ETD core purpose-designed for smaller applications that must have high power. Noise suppression networks and top quality MOSFETs help to achieve high current but with quiet operation. Unlike conventional Class-D amplifier designs, our design inherently rejects variations in the power supply. - Full-Bridge Output Stage: Operates from split power suppy rails ensuring exceptionally low distortion. Not only does the design increase the speed of switching it also dramatically increases switching efficiency. - Precision Driver Components and Military-Spec (FR-4-Rated) Glass-Epoxy Circuit Board: Reference-quality component parts and a circuit board painstakingly designed by hand guarantee an enviable degree of performance and long-term reliability even under extreme conditions. - Unique Temperature Sensors: Maintain a safe operating temperature even when the Monitor subwoofers are operating under maximum output conditions. - Superior Short Circuit Protection: Should current through the MOSFETs exceed our internally preset limit, the Digital Signal Processing (see below) disables the output stage. Reaction time is typically within 10 μs. - Digital Signal Processing: Monitors the line current and voltage so that long-term average output power remains continuous. Sophisticated mathematical algorithms shape frequency response (see graph) ensuring accurate, consistent and musical bass without distortion even when the subs are pounding out bass at the highest levels. PRECISION INJECTION-MOLDED CARBON-LOADED POLYPROPYLENE CONES A high stiffness-to-mass ratio is an important aspect in a woofer’s ability to deliver that loud, deep, clean and articulate bass we all desire. In this case, in-house injection-molding and a 30% carbon content made for a wonderfully stiff cone while the polypropylene, an inherently well-damped material, delivered the necessary lightness, the cone is never weighed down in its movement. - NLC™ NON-LIMITING CORRUGATED SANTOPRENE® SURROUNDS An extreme low-density thermoplastic elastomer, Santoprene possesses the flexibility and durability of rubber but with longer life expectancy and improved tolerance for operating extremes — exactly what we want in a woofer. Building on our success with this design in our high-end Signature series, Paradigm engineers created a new 3D model for the more compact Monitor subs. We applied FEA to conquer areas of concentrated stress, verify and perfect symmetry of motion and push the limits of excursion. The corrugations were also optimized — height, width and quantity — to assist in achieving the unbelievable one and a half inches of excursion on SUB 12 and only slightly less in its smaller siblings. Dimpling and cone wrinkling? Non existent even at full-on output. We then molded the surround over the cone edges to ensure a superior long lasting bond. Monitor SUB 10 Specifications Design Single driver, acoustic suspension, built-in advanced Ultra-Class-D™ amplifier, USB port for PBK?equalization, removable grille Amplifier 900 watts Dynamic Peak; 300 watts RMS Sustained Amplifier Features Auto-on/off, soft clipping, thermal protection Room Correction Paradigm Perfect Bass Kit™ (sold separately) Low Pass Filter Frequency Variable 50 Hz - 150 Hz; Bypass Option Low Frequency Driver 254-mm (10 in) carbon-loaded polypropylene cone, NLC™ non-limiting corrugated Santoprene® surround, 38-mm (1-1/2 in) 4-layer copper-clad aluminum voice coil. Nomex® spider, 4.5 lb ferrite magnet, AVS™ die-cast heatsink chassis Low Frequency Extension 17 Hz (DIN) Sub / Sat Phase Alignment Variable 0° - 180° Finishes Black Ash Inputs Two RCA (L/R-Mono) for L/R lineout or Sub-Out/LFE-Out of receiver/processor or other line-level source Compatible Products PT-2 Wireless Transmitter (sold separately) Weight 30 lbs. (13.6 kg) Dimensions HxWxD 13" × 11.125" × 12.75" (33cm × 28.3cm × 32.4cm)
เงื่อนไขอื่นๆ
Tags	PARADIGM Monitor SUB 10
