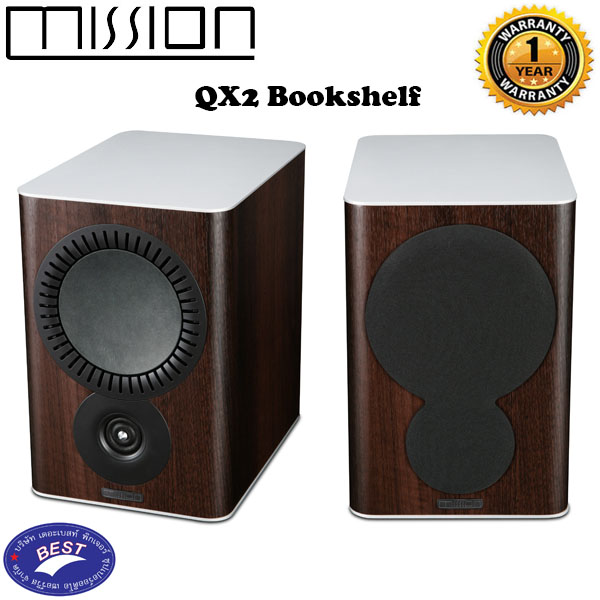

Mission Mission QX-2 Book Shelf (Pair) Walnut

Mission QX-2 Book Shelf

Mission brings its 40 years of audio expertise to an all-new speaker range. The QX range has striking looks and impressive performance - offering amazing value in both hi-fi and AV set-ups. Advanced new designs and extensive, exacting listening tests have evolved a loudspeaker that offers exciting and dramatic performance, no matter what style of music or movies - you prefer. Five core hi-fi models - 2 bookshelf designs and 3 floor standing speakers - are joined in the Mission QX range by a dedicated centre speaker, two-way surround speaker and selection of subwoofers.

THE DESIGN CONCEPT
QX series was designed to marry advanced engineering with a highly attractive and unique design that lets the speakers fit perfectly into the modern home. The front panel appearance hints at the advanced technology inside the speakers whilst presenting an attractive face to the listener.

REVERSE GEOMETRY DRIVEN DESIGN
Mission QX series utilizes Mission’s classic IDG (Inverted Driver Geometry) driver format. By positioning the treble unit below the bass/midrange driver, the length of path is equalized so the sound waves coincide at the listener’s head height. This principle improves ‘time alignment’.

NEW “RING DOME” TREBLE UNIT

New ‘ring dome’ treble unit offers high levels of musical detail with low distortion - the usual dome cavitation effects are completely avoided

Dual ring radiator – Mission’s exclusive ‘ring dome’ utilizes a woven, textile material formed in a double ring arrangement. The combination of textile dome and multi-ring surround applied optimum stiffness to the maximum radiating area.

Twin rear cavity non-reflecting design – back pressure from the diaphragm is vented to a twin rear cavity, reducing resonance and maintaining a wide operating bandwidth.

SOUND WOOFERS

Bass drivers feature Mission DiaDrive system
Natural midrange quality with superb bass transient impact is provided by a seam-free curvilinear cone formulated from a mixture of soft pulp and acrylic fiber specially designed for midrange clarity and lucidity.

DiaDrive twin cone design：

Backing the curvilinear front cone is a stiff, conical support with increased area of contact with the voice coil for outstanding transient impact.

“comb-tooth trim”

The drive unit surround and fixing screws are cleverly concealed behind this unique trim design giving a highly technical look to the front face of the speaker.

Mission QX-2
Speaker Type Bookshelf
Enclose Type Bass reflex enclosure / 2-way speaker
Driver 165mm long fibre composite cone
Tweeter 38mm Textile Ring Dome dome
Sensitivity 88db
Amplifier Requirements 25-120W
Peak SPL 95dB
Impedance 8 Ohms nominal impedance 3.6 Ohms minimum impedance
Frequency Response 44Hz - 24kHz
Crossover Frequency 2.2kHz
Dimension 320 x 220 x 300+10mm
Weight 8.5kg
