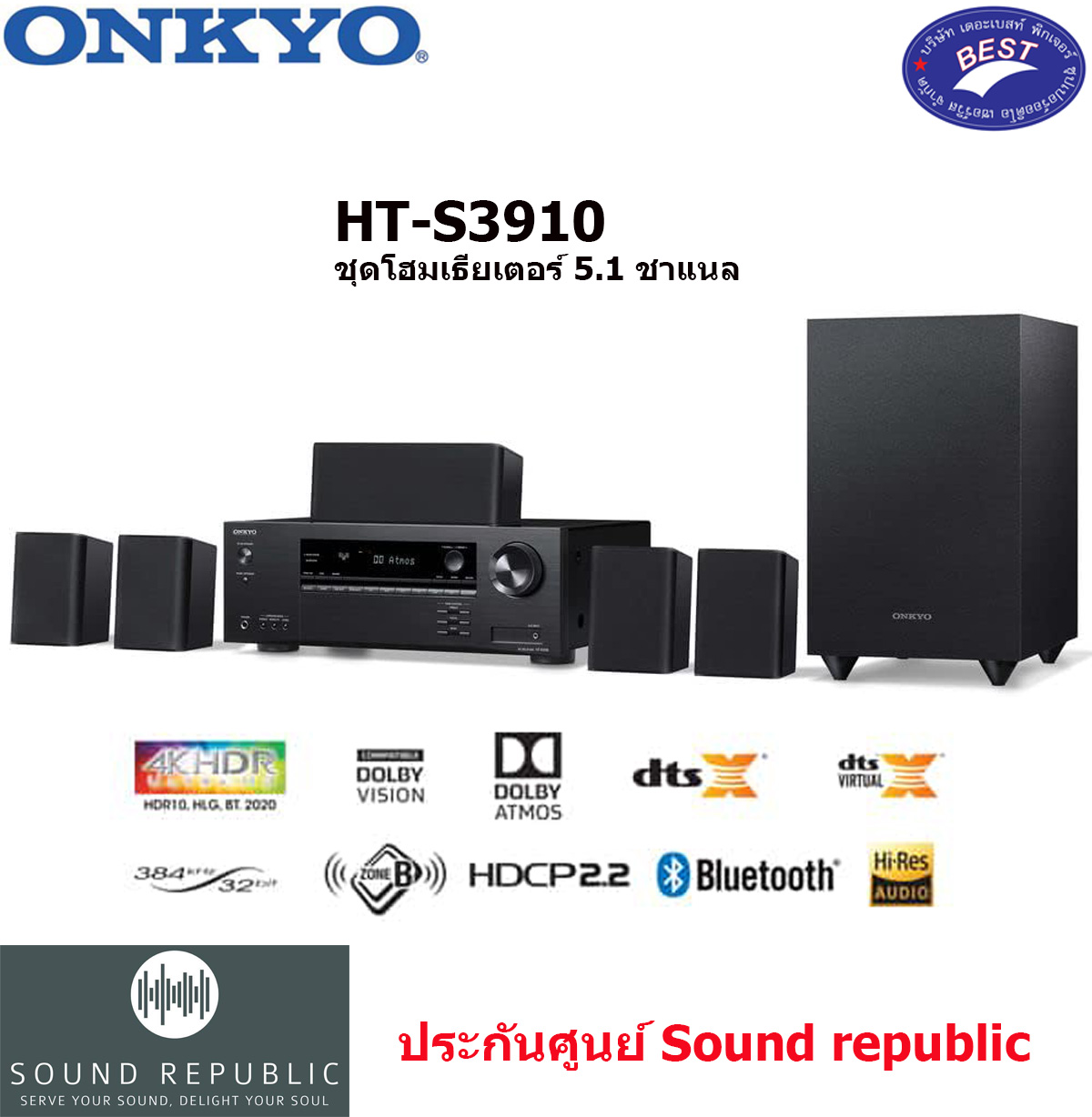

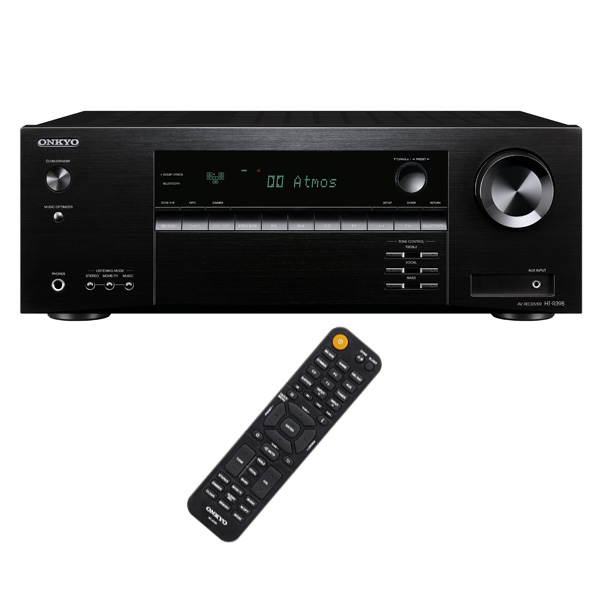

Onkyo HT-S3910 5.1-Ch Home Theater Receiver & Speaker Package

155 watts per channel

Supports 4K/60p and HDR (HDR10, HLG, Dolby Vision®, BT.2020)

Dolby Atmos® and DTS:X® playback

Dolby Atmos Height Virtualizer* and DTS Virtual:X™

Discrete high-current analog amp system with 4-ohm drive capability

Bluetooth® technology and Advanced Music Optimizer™

Vocal Enhancer function improves voice audibility

Zone B analog RCA line-output connects compatible devices such as wireless headphone transmitters or hi-fi systems to enable audio playback in Zone B or Main + Zone B simultaneously (including HDMI®/SPDIF)

OSD window shows media format data for quick confirmation

Dolby Atmos® and DTS:X® audio format playback through 3.1.2 channels

Dolby Atmos Height Virtualizer* and DTS Virtual:X™ 3D audio processing

Dolby Surround® and DTS® Neural:X technologies

Supports Dolby® TrueHD, DTS-HD Master Audio®, 3D Video, ARC (Audio Return Channel), DeepColor™, x.v.Color™, and LipSync

Supports 4K/60p video and HDR (HDR10, HLG, Dolby Vision®, BT.2020), 4:4:4 color-space, and HDCP 2.2

6-channel discrete high-current analog amp system with 4-ohm speaker-driving power (1 channel for passive subwoofer)

High-Current Low-Noise Power Transformer

Bluetooth® wireless streaming technology with Advanced Music Optimizer™ for enhanced playback quality

DSP-controlled Vocal Enhancer function improves dialog audibility

High-quality AKM 384 kHz/32-bit multichannel D/A conversion

Direct Mode for source-authentic stereo sound

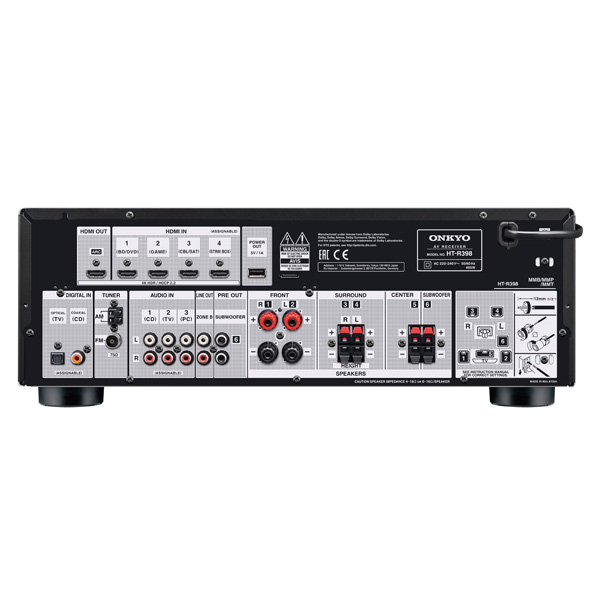

4 HDMI® inputs and 1 output with ARC (4K/60p, HDR, HDCP 2.2)

2 digital audio inputs (1 optical and 1 coaxial, assignable)

3 analog audio inputs (assignable)

Zone B line-out for unpowered audio distribution

Rear USB power supply terminal (5 V/1 A)

2 subwoofer pre-outs

Speaker terminals (screw-type x 2 [Front L/R], lever-type x 4)

6.35 mm headphone output (front)

GUI via HDMI with OSD featuring new A/V input/output information display

1080p to 4K Ultra HD upscaling over HDMI

Quick Connection Guide on rear panel

Direct Power On activates receiver when input key is pressed

HDMI passthrough standby mode

Tone controls for Front L/R channels (bass/treble)

3-Mode front-panel display dimmer (Normal/Dim/Dimmer)

AM/FM tuner with 40 random presets

Sleep timer

Simple remote control

7.7 cm cone

Max. input power: 150 W

High-quality matte black finish

Ready to wall-mount

7.7 cm cone

Max. input power: 150 W

High-quality matte black finish

Ready to wall-mount

7.7 cm cone

Max. input power: 150 W

High-quality matte black finish

Ready to wall-mount

16 cm cone

Max. input power: 120 W

Down-firing design

Power Output (Front L/R / Center / Surround L/R / Subwoofer):
155 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) x 5 ch,
125 W (6 ohms, 100 Hz, 10% THD) subwoofer (passive);
135 W/Ch (6 ohms, 1 kHz, 1% THD, 1 channel driven, IEC) x 5 ch,
100 W (6 ohms, 100 Hz, 1% THD, IEC) subwoofer (passive)

Dimensions (W x H x D): 435 x 160 x 328 mm

Weight: 8.2 kg

Frequency Response:
Front/surround 80 Hz–20 kHz
Center 70 Hz–20 kHz
Subwoofer 28 Hz–5 kHz

Dimensions (W x H x D):
Front/surround 98.5 x 140.5 x 106 mm
Center 244 x 96 x 102 mm
Subwoofer 230 x 389 x 331.5 mm

Weight:
Front/surround 0.5 kg
Center 0.6 kg
Subwoofer 4.6 kg
